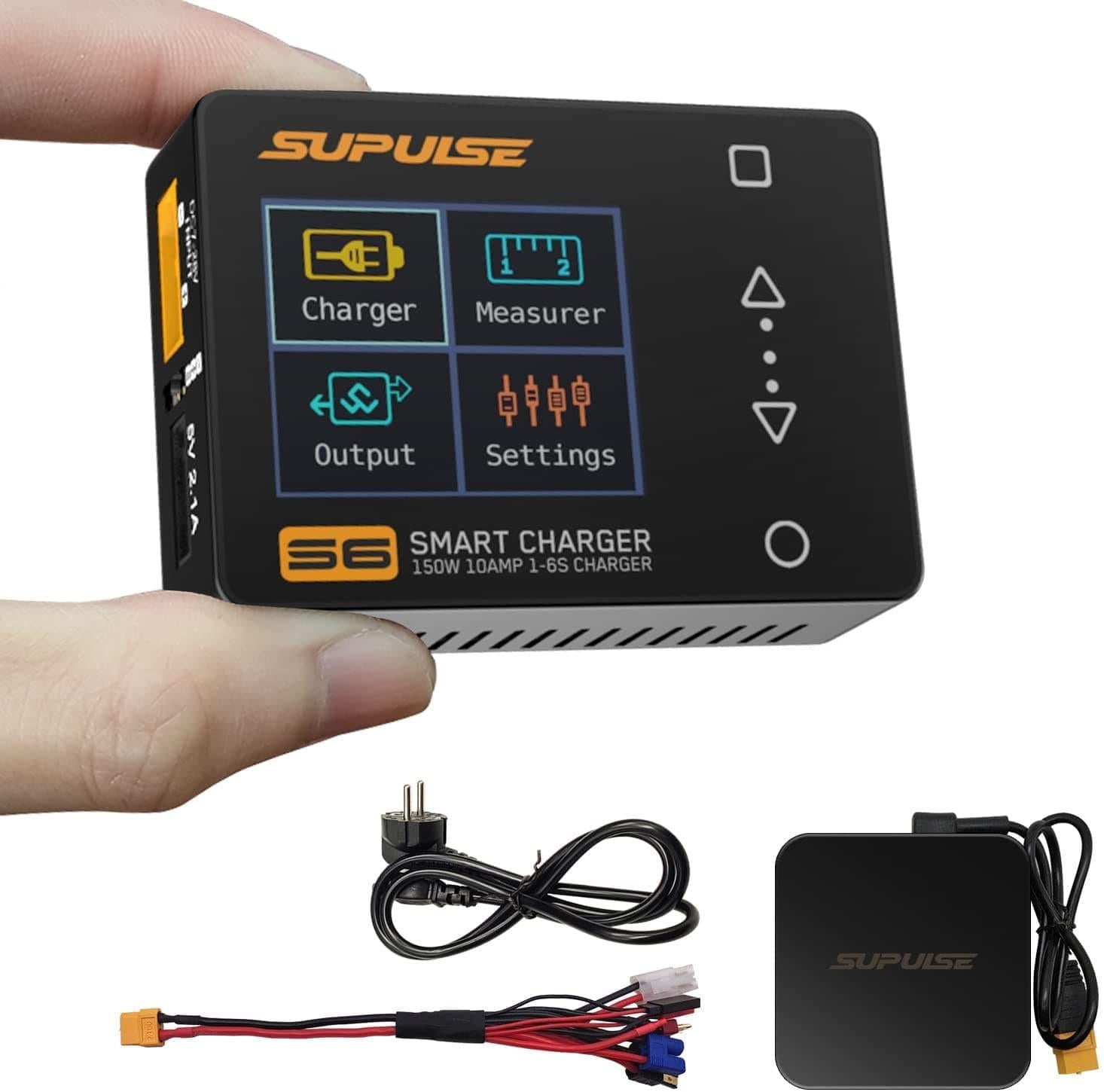

SUPULSE S6 Balance Charger Discharger for 1S-6S LiPo Battery NiMH/NiCD/Li-PO/Li-Fe/Pb
-
Free Shipping
Money back within 30 days for an exchange.
S6 is a multi-function charger and discharger that integrates receiver and servo test functions along with power supply functions.
- MINI POCKET LIPO CHARGER - 150W high power, max. 10A charging current for 1 ~ 6S lithium battery. The S6 is a newly designed highly integrated that is small and easy to carry.
- COLOURFUL TFT SCREEN - Low power consumption: 1.8" screen, excellent 650,000 colors, ajustable viewing angle, display clear and distinct for easy use.
- ADVANCED COOLING SYSTEM - New cooling system ecnures cool and efficient operation. When the internal temperature reaches 50°C，the fan turns on the full speed air volume to enhance heat dissipation.
- NEW TOUCH EXPERIENCE - Capacitive touch keys for longer life, slliding operation makes it easier, sturdier and more durable to use. Tap, slide, and charge, all in one go.
- MULTI-FUCTION LIPO CHARGER - Not only a lipo battery charger discharger, but also a checker to measure the voltage and power of battery without an power adapter. NOTE: Doesn't come with an adapter so you need to purchase the adapter additionally.
![SUPULSE S6 Balance Charger Discharger for 1S-6S LiPo Battery NiMH/NiCD/Li-PO/Li-Fe/Pb]()
Specifications:
Charger
Input voltage: 7.0-28V@MAX 12A
Type of battery: Lipo LiHV LiFe Lion @1-6S
NiMh @1-16S Pb @1-10S
Charge power: 0.1-20A@150W
Discharge power: 0.1-20A@150W Recycle mode
0.1-2A@8W Normal mode
USB: 2.1A 5.0V Upgrade USB3.0
Measurement
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal Resistance: 10-99mR @1-6S
Output
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz
SBUS: 880-2200us*16CH @74Hz
Power: 1-10A@1-28V Mode:CC+CV
LCD Display: 1.8" TFT RGB 160*128 Pixel
Packing Information:
Weight：140g
Size：80*80*35mm
| Battery Type: | Life, Li-lon, NiMH/Nicd, LiHV |
| c.Weight (lbs): | 1.76 |
| Charger Power: | 100W |
| Discharge Power: | 0.1-2A@8W |
| Display: | 1.8" TFT RGB 160*128 Pixel |
| For LiPo Cells: | 1s-6s |
| Input voltage: | AC (100-240V), DC (7-28V MAX 12A ) |
| Max Output Current: | 12A@100W |
